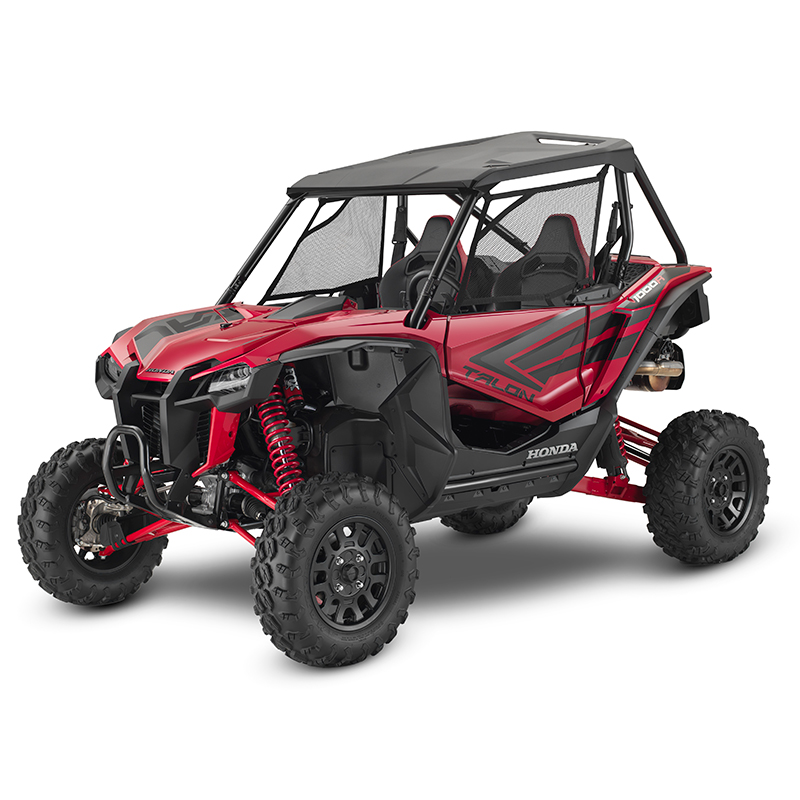

TALON 1000R

TALON 1000R
We welcome the Talon 1000R, a Sports SXS ideal for high speeds and open terrain, chock-full of technical innovation and legendary Honda quality. From the minute you buckle in, it will amaze you
INTRODUCTION

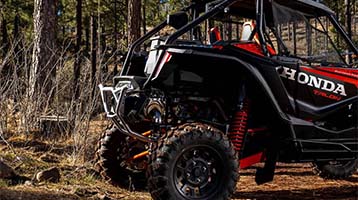

ENGINE
The 999cc four-valve Unicam® parallel-twin engine is a performance-tuned version of the platform from the durable Pioneer 1000 multipurpose side-byside and CRF1000L Africa Twin adventure motorcycle. Developed in Japan by Honda Motor, and produced at the Kumamoto plant, the water-cooled engine features a 270 degree crossplane crankshaft.
- 999cc Unicam® parallel-twin engine, performance-tuned for strong torque and linear power delivery
- 6-speed Dual Clutch Transmission (DCT) with high-low sub-transmission and automatic and manual modes
- Ignition Feedback Control for faster gear changes
- Piston oil jets for cool engine temperature and engine longevity
- Oversized radiator and fan and tuned intake and exhaust for performance and sound quality

CHASSIS/SUSPENSION
The Talon feature a frame and suspension components that were engineered and developed at Honda R&D America's Raymond, Ohio, campus, for a plush ride, maximum ground clearance and precise steering response. A 44% front-end weight bias is ideal for handling and a balanced feel as well as automotive-industry design concepts that bring a new level of engineering to the category. The Talon 1000Rs suspension and wheelbase are intended to emphasize high-speed tracking and large bump absorption; suitable for a broad range of terrain types.
The all-new, one-piece frame was designed and developed incorporating Honda's vast off-road design knowledge to achieve optimum handling properties by maintaining appropriate levels of stiffness and compliance to retain consistent geometry even when pushed under the hardest loads. As a result, the vehicle behaves and responds predictability for a more controlled, confidence-inspiring ride. In addition, the frame undergoes a state-of-the-art process that includes an e-coat dip, oven baking, powdercoat spraying, and another oven bake, all of which guarantee the quality of the paint and ensure the rust-prevention needs are met.
- Double-wishbone front suspension, Fox Podium 2.5 shocks with Quick Switch 3; 449 mm of travel
- 4+ Link trailing-arm rear suspension with toe link, Fox Podium 2.5 shocks with Quick Switch 3; 510mm of travel
- 44% front weight bias for balanced handling
ADDITIONAL FEATURES
The Talon's silhouette is low, and minimization of bulk was a focus during development. (Approximately 25% of the vehicle's mass was shed during the design evolution.) Knowing the rigors through which customers would put the Talon, designers stressed efficient engine cooling, with motorcycle-inspired shrouds and four side vents, all of which are unique to the side-by-side world. The roof, which comes standard on the Talon, incorporates a front lip to keep moisture from reaching the interior (even when braking in rainy conditions), and a horizontal pass-through slit both creates a functional spoiler (providing downforce at higher speeds) and allows appropriate aerodynamics when the vehicle is towed on a trailer, whether it's facing forward or backward.
- On-the-fly changing between 2WD and 4WD via dash-mounted switch that operates at any engine speed
- Electronic Brakeforce Distribution (EBD) for stability under braking
- Brake Traction Control System (BTCS) directs torque to wheels that have the most grip
- Hill Start Assist (HSA)
- Centre console and creature comfort dual cockpits
- Driveshaft boot protectors
- Comfortable, weather-resistant supportive seats
- Clutch temperature warning light
- LED Headlights with high/low beam and 12V accessory adapter is standard
ENGINE | |
---|---|
ENGINE TYPE | 999cc liquid-cooled Unicam® OHC longitudinally mounted parallel-twin four-stroke; four valves per cylinder |
BORE & STROKE | 92.0mm x 75.15mm |
COMPRESSION RATIO | 10.0:1 |
INDUCTION | Fuel injection, 46mm throttle bodies |
TRANSMISSION | Six-speed automatic DCT + reverse and high/low sub-transmisson |
CLUTCH | 2-Multiplate Wet |
DRIVELINE | Direct front and rear driveshafts |
FRAME | |
---|---|
GROUND CLEARANCE | 322mm |
WHEELBASE | 2225mm |
KERB WEIGHT | 676kg* |
SEAT HEIGHT | 323mm |
DIMENSIONS | 3147 X 1,626 X TBC(LxWxH) |
CARGO BED CAPACITY | 136 kg |
TYRES | |
---|---|
FRONT | 28x9x15 |
REAR | 28x11x15 |
SUSPENSION | |
---|---|
FRONT | Double wishbone; 449 mm travel, Fox Podium 2.5 with Quick Switch 3 |
REAR | 4+ Link trailing arm; 510mm travel, Fox Podium 2.5 with Quick Switch 3 |
BRAKES | |
---|---|
FRONT | Dual hydraulic 250mm discs; Electronic Brakeforce Distribution (EBD) system |
REAR | Dual hydraulic 250mm discs; Electronic Brakeforce Distribution (EBD) system |
FUEL | |
---|---|
FUEL CAPACITY | 27.6 litres (4.2 litre reserve) |
OTHER | |
---|---|
COLOUR | TBC |
NOTE | *Includes all standard equipment, required fluids and full tank of fuel—ready to ride Recommended for riders 16 years of age and older |
